EL9100 Beckhoff Potential supply terminal 24 V DC

Name: EL9100 Beckhoff Potential supply terminal 24 V DC
Brand: Beckhoff
Price: 1 USD

China EL9100 Beckhoff Potential supply terminal 24 V DC wholesale

Brand Name : Beckhoff

Model Number : EL9100

Certification : CE

Place of Origin : Germany

MOQ : 1set

Price : $1--$1000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100PCS/MONTHS

Delivery Time : 1-10 working days

Packaging Details : 100% original package

Model : EL9100

Warranty : 1 Year

Product Type : Potential supply terminal

Shipping Weight : 0.5 Kg

Estimated Lead Time : 1-10 working days

Contact Now

Beckhoff EL9100 | Potential supply terminal, 24 V DC

Product Description

The EL9100 potential feed terminal enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage is taken up via the front terminal contacts and passed through to the adjacent terminals via the internal power contacts. The E-bus is passed through in the usual way to the adjacent terminal. A Power LED indicates the operating state.

Product Information

Technical data	EL9100
Technology	potential supply terminal
Current load	≤ 10 A
Power LED	green
Renewed infeed	yes
Nominal voltage	24 V DC
Electrical isolation	500 V (E-bus/field potential)
PE contact	yes
Connection facility to additional power contact	1
Bit width in the process image	0
Housing width	12 mm
Side by side mounting on EtherCAT Terminals with power contact	yes
Side by side mounting on EtherCAT Terminals without power contact	yes
Weight	approx. 50 g
Operating/storage temperature	-25…+60°C/-40…+85°C
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Housing data	EL-12-8pin	ES-12-8pin
Design form	compact terminal housing with signal LEDs	terminal housing with pluggable wiring level
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²	s: 0.08…1.5 mm², st: 0.08…1.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16	s: AWG28…16, st: AWG28…16, f*: AWG26…16
Stripping length	8…9 mm	9…10 mm
Current load power contacts	Imax: 10 A

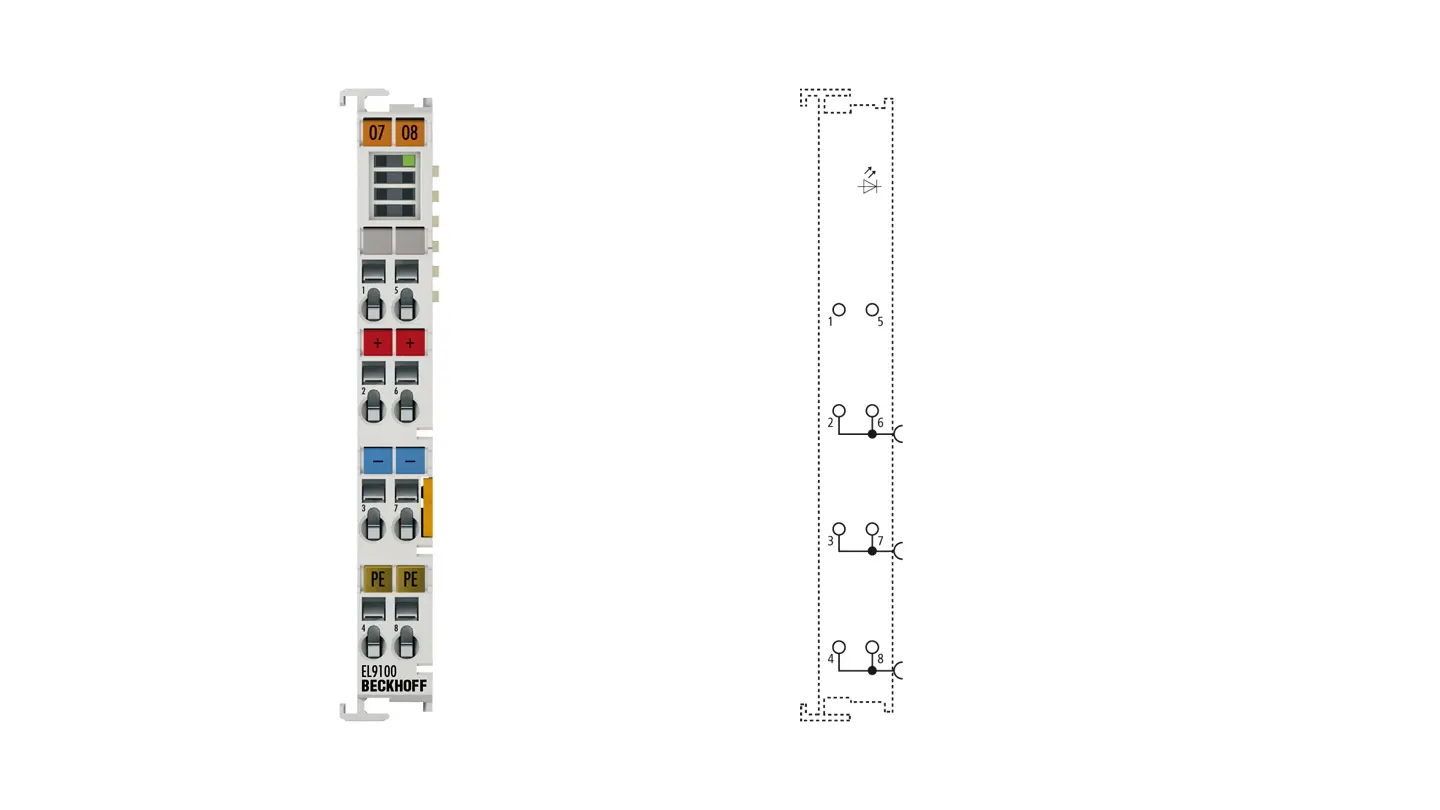

Product Photo

EL9100 Beckhoff Potential supply terminal 24 V DC

More Products

Ordering information
EL9100	Potential supply terminal, 24 V DC
ES9100	Potential supply terminal, 24 V DC, pluggable wiring
