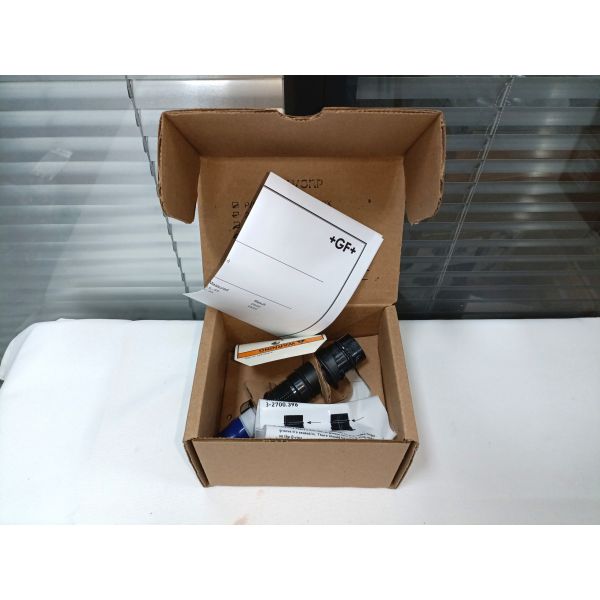

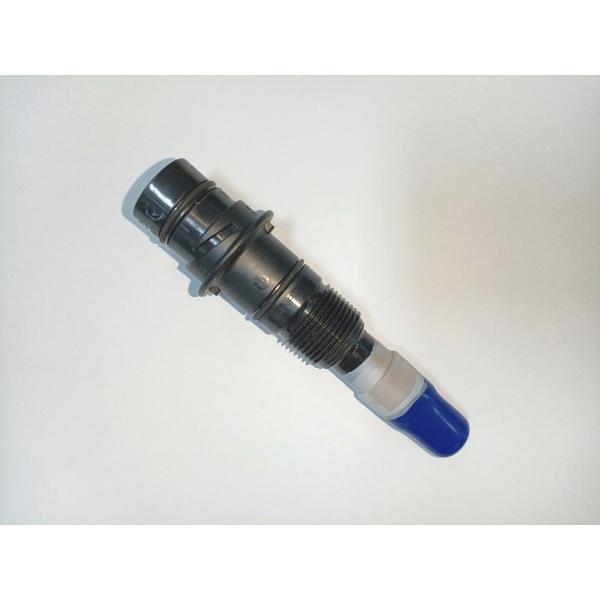

3-2726-LC-00 Georg Fischer Type 2724/2726 DryLoc pH/ORP Electrodes Bulb Tip & Low Conductivity pH/ORP Electrode

General

Performance

Efficiency

>97% @ 25 °C (77 ° F)

Operating Range

pH

0 to 14 pH

ORP

±2000 mV

3-2726-LC

Low conductivity fluids; 20 - 100 μS/cm nominal < 20 μS; flow must be less than 150 ml/min in a properly grounded system

3-2724-HF, 3-2726-HF

Hydrofluoric acid resistant glass, pH 6 or below; trace HF ≤2%

Compatibility

2750 Sensor Electronics (for 8900, 9900, 4 to 20 mA or Profibus Concentrator),
2760 Preamplifier (8750)

Temperature Sensor

PT1000 versions

Compatible with Signet 2750 pH/ORP Sensor electronics for
connection to a PLC or to the Signet 8900 or 9900 instruments

3 KΩ Balco versions

Compatible with the Signet 2760 pH/ORP preamplifier for connection to the Signet 8750 pH/ORP Transmitter also compatible with the
2750 pH/ORP Sensor Electronics

Process Connection

¾ in. NPT

ISO 7/1-R 3/4

Mounts into Signet fittings
